6MN082

6MN082 ; Canadian Marconi Co. (ID = 1193647) Car Radio

6MN082 ; Canadian Marconi Co. (ID = 1193648) Car Radio

6MN082 ; Canadian Marconi Co. (ID = 1193649) Car Radio

6MN082 ; Canadian Marconi Co. (ID = 1193650) Car Radio

6MN082 ; Canadian Marconi Co. (ID = 1193651) Car Radio

6MN082 ; Canadian Marconi Co. (ID = 1193652) Car Radio

6MN082 ; Canadian Marconi Co. (ID = 1193653) Car Radio

6MN082 ; Canadian Marconi Co. (ID = 1193654) Car Radio
6MN082 ; Canadian Marconi Co. (ID = 1193642) Car Radio
Use red slider bar for more.
6MN082 ; Canadian Marconi Co. (ID = 1193642) Car Radio
Canadian Marconi Co.: 6MN082 [Car Radio] ID = 1193642 933x513
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6MN082, Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC:

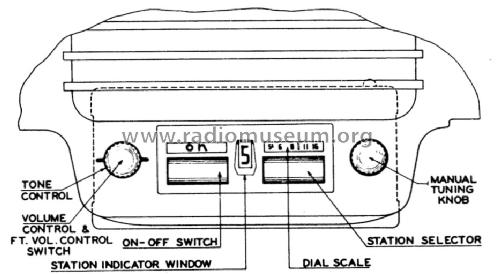

Picture from Marconi Radio Service Manual

Country:  Canada
Manufacturer / Brand:  Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
alternative name

CMC Canada || Marconi, Canada
Year: 1940 ?? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 7A7 7B8 7A7 7B6 7C5 7Y4
Main principle Superhet with RF-stage; ZF/IF 265 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6.3 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out 5.5 W (unknown quality)
from Radiomuseum.org Model: 6MN082 - Canadian Marconi Co. Ltd. CMC,
Material Metal case
Shape Chassis only or for «building in»
Notes The Marconi Model 6MN082 is a 6.3V Battery operated 6 Tube Car Radio. BC Band Tuning Range: 540 to 1600kHz. Uses Qty(1) 8" speaker. Made for Nash.

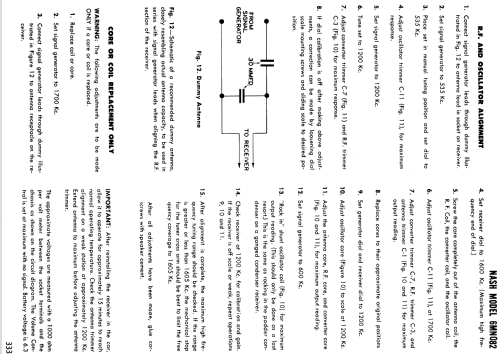

Literature/Schematics (1) Marconi Service Manual Volume No. 2 (Volume 2, Page 329)

Model page created by John Kusching. See "Data change" for further contributors.
