Constellation Eight Transistors 489
Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1959 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 328317
-
- alternative name: CMC Canada || Marconi, Canada

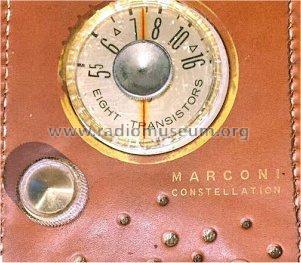

Courtesy by Bob Airhart
Courtesy by Bob Airhart
Courtesy by Bob Airhart
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / AA: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Constellation Eight Transistors 489 - Canadian Marconi Co. Ltd. CMC,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
This radio is almost identical to the Emerson Satellite 888. Thanks to an agreement stipulated in 1954 with the Emerson Radio Export Corporation of New York, the Canadian Marconi Company (CMC) acquired the right to use the Emerson licences to produce and to sell in Canada receivers with the brand Emerson.
- Author
- Model page created by Aldo Andreani. See "Data change" for further contributors.
