Magnetic Detector

Magnetic Detector ; Canadian Marconi Co. (ID = 1978209) mod-pre26 Magnetic Detector ; Canadian Marconi Co. (ID = 1978210) mod-pre26

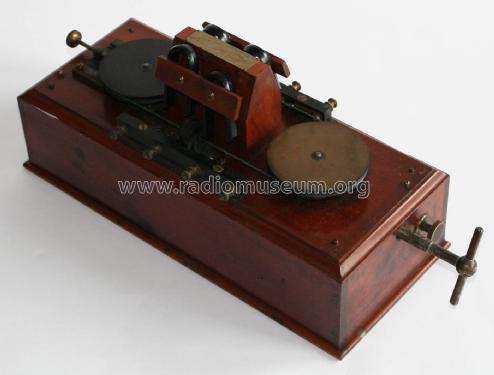

Magnetic Detector ; Canadian Marconi Co. (ID = 1978211) mod-pre26 Magnetic Detector ; Canadian Marconi Co. (ID = 1978212) mod-pre26
Magnetic Detector ; Canadian Marconi Co. (ID = 1978213) mod-pre26
Use red slider bar for more.
Magnetic Detector ; Canadian Marconi Co. (ID = 1978209) mod-pre26
Canadian Marconi Co.: Magnetic Detector [mod-pre26] ID = 1978209 1400x1024
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magnetic Detector, Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

Country:  Canada
Manufacturer / Brand:  Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
alternative name

CMC Canada || Marconi, Canada
Year: 1905–1912 ?? Category: Radio module pre 1926 (not a part, not a key)
Details
Loudspeaker
Power out
from Radiomuseum.org Model: Magnetic Detector - Canadian Marconi Co. Ltd. CMC,
Material Wooden case
Dimensions (WHD) 22 x 10.5 x 8 inch / 559 x 267 x 203 mm
Notes

This is an early wireless detector which uses a moving band of metal wire and permanent magnets. It is run by a clockwork mechanism which must be wound-up by the wireless operator to operate.

The Canadian Marconi Company Magnetic Detector was very similar if not a direct copy of the British Marconi Company "Maggie Detector."

Model page created by Richard Groshong. See "Data change" for further contributors.
