Marconi 369

Marconi 369; Canadian Marconi Co. (ID = 611602) Radio Marconi 369; Canadian Marconi Co. (ID = 611603) Radio
Marconi 369; Canadian Marconi Co. (ID = 611604) Radio Marconi 369; Canadian Marconi Co. (ID = 611605) Radio
Use red slider bar for more.

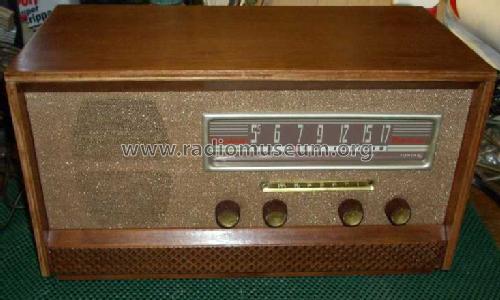

Marconi 369; Canadian Marconi Co. (ID = 611602) Radio
Canadian Marconi Co.: Marconi 369 [Radio] ID = 611602 733x441
Select picture or schematic to display from thumbnails on the right and click for download.
For model Marconi 369, Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC:
1953 Marconi radio model 369 from my collection

Country:  Canada
Manufacturer / Brand:  Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
alternative name

CMC Canada || Marconi, Canada
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12BE6 12BA6 12BA6 12AV6 35L6 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Marconi 369 - Canadian Marconi Co. Ltd. CMC,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 17 x 10 x 9 inch / 432 x 254 x 229 mm
Notes Marconi 369 is a Canada made large table model with phono input.
Net weight (2.2 lb = 1 kg) 5.448 kg / 12 lb 0 oz (12 lb)
Price in first year of sale 45.00 CDN
Source of data - - Data from my own collection

Model page created by John Allen. See "Data change" for further contributors.



All listed radios etc. from Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
Here you find 443 models, 303 with images and 363 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
