Marconiphone MK I

Marconiphone MK I; Canadian Marconi Co. (ID = 2299802) Radio Marconiphone MK I; Canadian Marconi Co. (ID = 2249838) Radio
Marconiphone MK I; Canadian Marconi Co. (ID = 1013469) Radio Marconiphone MK I; Canadian Marconi Co. (ID = 1013470) Radio
Marconiphone MK I; Canadian Marconi Co. (ID = 1013471) Radio Marconiphone MK I; Canadian Marconi Co. (ID = 1013472) Radio
Marconiphone MK I; Canadian Marconi Co. (ID = 1013473) Radio Marconiphone MK I; Canadian Marconi Co. (ID = 1013474) Radio
Marconiphone MK I; Canadian Marconi Co. (ID = 1013475) Radio Marconiphone MK I; Canadian Marconi Co. (ID = 2249839) Radio
Use red slider bar for more.
Marconiphone MK I; Canadian Marconi Co. (ID = 2299802) Radio
Canadian Marconi Co.: Marconiphone MK I [Radio] ID = 2299802 1400x1179
Select picture or schematic to display from thumbnails on the right and click for download.
For model Marconiphone MK I, Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC:
Collection privée (réf.: 1879)

Country:  Canada
Manufacturer / Brand:  Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
alternative name

CMC Canada || Marconi, Canada
Year: 1923 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: WX199 WX199 WX199
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Details
Power type and voltage Dry Batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Marconiphone MK I - Canadian Marconi Co. Ltd. CMC,
Material Wooden case
Shape Tablemodel, slant panel.
Dimensions (WHD) 9.75 x 7 x 7.75 inch / 248 x 178 x 197 mm
Notes

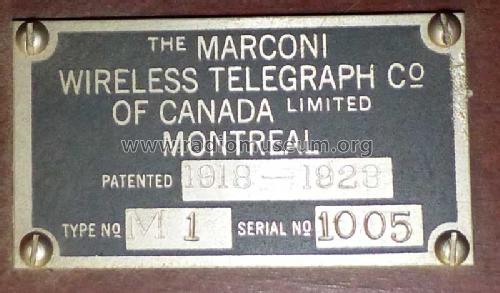

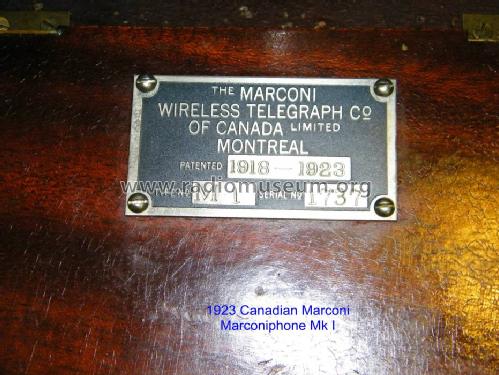

Marconiphone 1 or model M1 as noted on the serial number tags is a two-piece set. Dimensions are for an individual unit.

The tuner unit has a single WX199 vacuum tube and the amplifier unit has two WX199 vacuum tubes.

Price in first year of sale 50.00 $
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in The Early Development of Radio in Canada 1901-1930 (Page 32)
