Power Supply 22020-1525

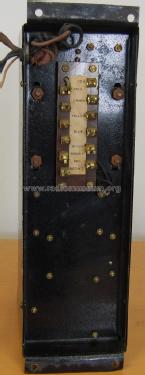

Power Supply 22020-1525; Canadian Marconi Co. (ID = 2225108) Power-S Power Supply 22020-1525; Canadian Marconi Co. (ID = 2225109) Power-S
Power Supply 22020-1525; Canadian Marconi Co. (ID = 2225110) Power-S Power Supply 22020-1525; Canadian Marconi Co. (ID = 2225111) Power-S
Use red slider bar for more.
Power Supply 22020-1525; Canadian Marconi Co. (ID = 2225108) Power-S
Canadian Marconi Co.: Power Supply 22020-1525 [Power-S] ID = 2225108 1400x884
Select picture or schematic to display from thumbnails on the right and click for download.
For model Power Supply 22020-1525, Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

Country:  Canada
Manufacturer / Brand:  Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
alternative name

CMC Canada || Marconi, Canada
Year: 1927 ? Category: Power supply/conditioner or battery or charger
Valves / Tubes 1: UX280
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Power Supply 22020-1525 - Canadian Marconi Co. Ltd. CMC,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 16 x 8 x 5 inch / 406 x 203 x 127 mm
Notes

B+ supply voltages:  180 vdc;  135 vdc;  40 vdc

Filament supply voltages:   5 vac;  2 vac;  1.5 vac

Model page created by George Papaiz. See "Data change" for further contributors.
