• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 294266

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1T4 1S5 3Q4

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 7.5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: C141 - Canadian General Electric

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

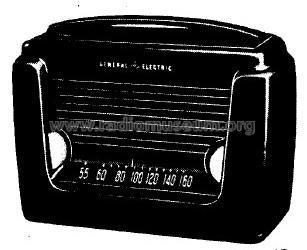

• The Canadian General Electric model C141 is a 4-tube portable radio powered by internal dry batteries. Receives standard broadcast with an internal loop antenna.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 23 pages 9 to 11)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
