C427

C427 ; Canadian General (ID = 2096135) Radio
Use red slider bar for more.
C427 ; Canadian General (ID = 2096135) Radio

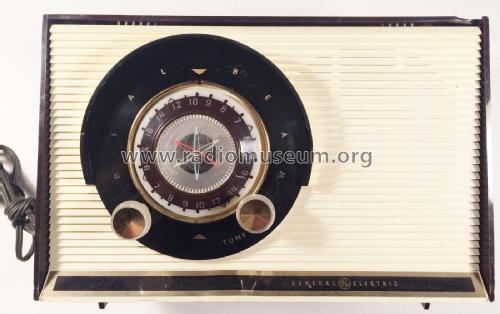

Canadian General: C427 [Radio] ID = 2096135 1400x881
Select picture or schematic to display from thumbnails on the right and click for download.
For model C427, Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

Country:  Canada
Manufacturer / Brand:  Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12AU6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
Power out 1.9 W (max.)
from Radiomuseum.org Model: C427 - Canadian General Electric
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 302 x 200 x 137 mm / 11.9 x 7.9 x 5.4 inch
Notes

Same as USA model 860. Similar to USA models 861 and 862 except colour.

Net weight (2.2 lb = 1 kg) 4 lb 2 oz (4.125 lb) / 1.873 kg

Model page created by Jack Sorensen. See "Data change" for further contributors.
