• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 231501

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BE6 12SK7GT 12SK7GT 12SQ7GT 35L6 35Z5

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 5 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

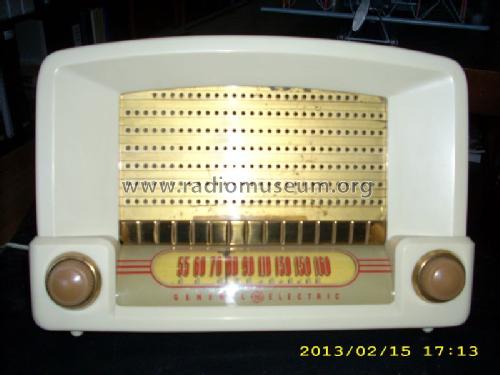

• Model: C600 - Canadian General Electric

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12.5 x 8 x 7.5 inch / 318 x 203 x 191 mm

• Net weight (2.2 lb = 1 kg)
• 4.3 lb (4 lb 4.8 oz) / 1.952 kg

• Price in first year of sale
• 16.95 CDN

• Author
• Model page created by John Allen. See "Data change" for further contributors.
