• Year
  • 1948/1949
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 94320

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / Either AC: 25-60 Hz, 105-125V or DC: 105-125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
  • Power out
  • 1.25 W (2 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: C-100 [Serial numbers R98680 to R104679] - Canadian General Electric
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 12 x 7.5 x 7.5 inch / 305 x 191 x 191 mm
  • Notes

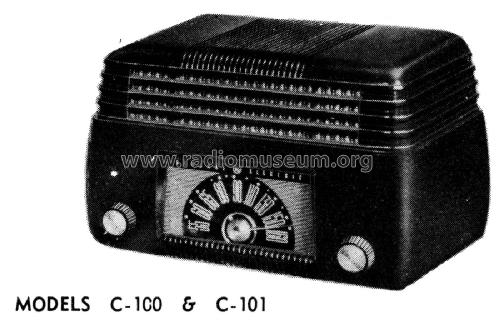

  • The General Electric C-100 is an AC/DC operated 5 tube BC band receiver.  The BC band frequency tuning range is 540 - 1600kHz. Has built-in loop antenna with provisions for connecting an external antenna. The models with these serial numbers have a record player input jack.

    The following models use the same schematic and chassis but have different cabinets:

    Model Cabinet
    C-100 Brown Plastic
    C-101 Ivory Plastic
    C-103 Mahogany Wood
    C-105 Maple Wood

    Note: The following changes were made on models having serial numbers of R98680 to R104679 (Per GE Service Manual):

    a)   Eliminated R1 470 Ohm resistor in antenna circuit and uses tapped loop antenna.
    b)   R2 10Megohm resistor eliminated.
    c)   C6 eliminated from oscillator circuit and a new oscillator coil is used.
    d)   A phono input jack has been added and a shorting bar added to the rotor of the oscillator section of the tuning capacitor that shorts the oscillator when the record player is used.

  • Literature/Schematics (1)
  • Radio College of Canada, Individual Circuit Service, 1927-1953
  • Literature/Schematics (2)
  • - - Manufacturers Literature (General Electric Radio and Television Service Manual 1945-1949 Pages 68 - 71)
  • Author
  • Model page created by Vitor Oliveira. See "Data change" for further contributors.
