• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94190

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SG7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Power out
• 1.25 W (2 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: C-220 - Canadian General Electric

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 13.25 x 8.06 x 8.38 inch / 337 x 205 x 213 mm

• Notes

• Loop antenna.

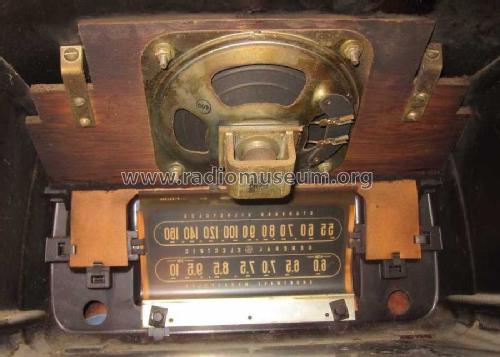

  The Canadian General Electric model C-220 is a 6 tube 2 band table radio. Band coverage is 540-1600 kHz and 6000-10000 kHz. The cabinet options are as follows:

  C-219	Ivory	Plastic
  C-220	Mahogany	Plastic
  C-221	Walnut	Wood

  All three model have the schematic.

• Literature/Schematics (1)
• Radio College of Canada, Individual Circuit Service, 1927-1953

• Literature/Schematics (2)
• General Electric Radio and Television Service Manual 1945-1949 (Pages 126-129)

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
