• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94169

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Power out
• 1.2 W (1.5 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: C-321 - Canadian General Electric

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 14 x 9.5 x 8 inch / 356 x 241 x 203 mm

• Notes

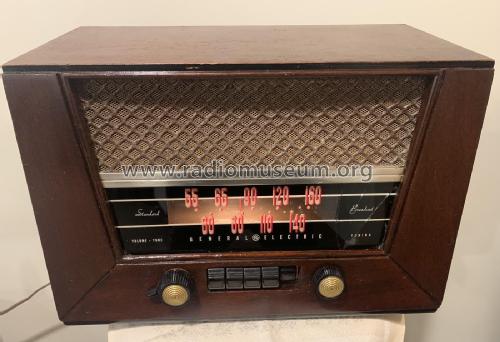

• The Canadian General Electric model C-321 is a 6 tube AC/DC table radio with push buttons for 4 preset stations.The radio uses an internal loop antenna.

• Mentioned in
• General Electric Radio and Television Service Manual 1945-1949 (Pages 140-143)

• Literature/Schematics (1)
• Radio College of Canada, Individual Circuit Service, 1927-1953

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
