- Country
- Canada
- Manufacturer / Brand
- Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 298284
kijiji ad 1557937281
from kijiji ad 1557937281
kijiji ad 1557937281
kijiji ad 1557937281
kijiji ad 1557937281
kijiji ad 1557937281
- Number of Tubes
- 8
- Valves / Tubes
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 to 125 Volt
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: C-709 - Canadian General Electric
- Shape
- Console with any shape - in general
- Notes
-

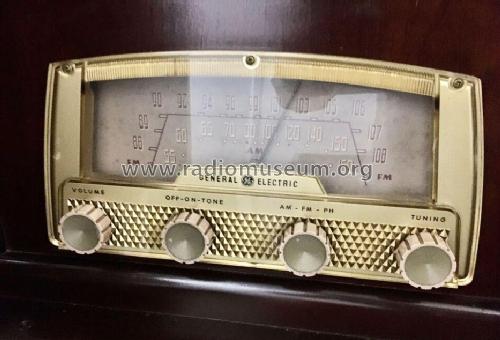

The Canadian General Electric model C-709 is an 8-tube AM/FM console with built in 3 speed record player. Uses a magnetic phono pickup. With Beam-A-Scope antenna.
For 25 or 60 Hz depending on nameplate rating.
- Mentioned in
- Radio-Television-Appliance magazine January 1952
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
