CL-500 Serial-# R119680 - R159660

CL-500 ; Canadian General (ID = 202328) Radio
CL-500 ; Canadian General (ID = 484373) Radio CL-500 ; Canadian General (ID = 484375) Radio
CL-500 ; Canadian General (ID = 484374) Radio CL-500 ; Canadian General (ID = 2215150) Radio
Use red slider bar for more.
CL-500 ; Canadian General (ID = 484373) Radio

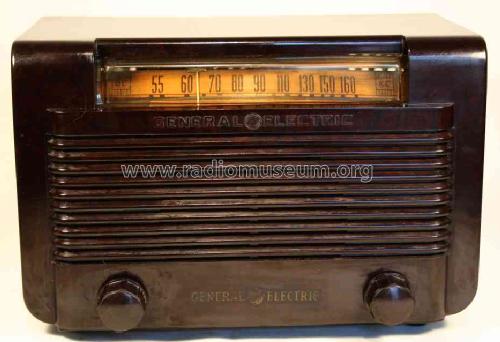

Canadian General: CL-500 [Radio] ID = 484373 933x683
Select picture or schematic to display from thumbnails on the right and click for download.
For model CL-500 Serial-# R119680 - R159660, Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

Country:  Canada
Manufacturer / Brand:  Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: CL-500 [Serial-# R119680 - R159660] - Canadian General Electric
Material Moulded (Bakelite or Plastics)
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 9.25 x 6 x 5.75 inch / 235 x 152 x 146 mm
Notes A battery set model C-47B uses the same case.
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Radio College of Canada, Individual Circuit Service, 1927-1953

Model page created by Vitor Oliveira. See "Data change" for further contributors.
