• Year
  • 1945
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 288759

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1.5 & 67.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
  • Power out
  • 0.05 W (0.12 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: KM-44BP - Canadian General Electric
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 9 x 3 x 3.75 inch / 229 x 76 x 95 mm
  • Notes

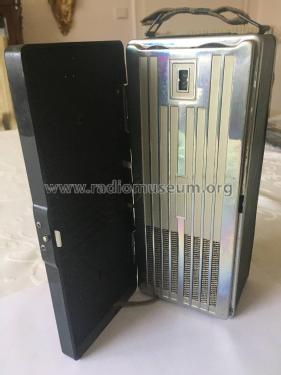

  • The Canadian General Electric model KM-44BP is a 4 tube, battery operated, portable radio for broadcast reception. Coverage is 540-1600 kHz. Tuning drive ratio is 1:1

    The recommended A battery is an Eveready 950 (current consumption 0.25 A)

    The recommended B battery is an Eveready 467 (current consumption 8.5 mA)

  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
