• Country
• Canada

• Manufacturer / Brand
• Canadian Admiral Co. Ltd; Long Branch, Ont.

• Year
• 1958 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 306932

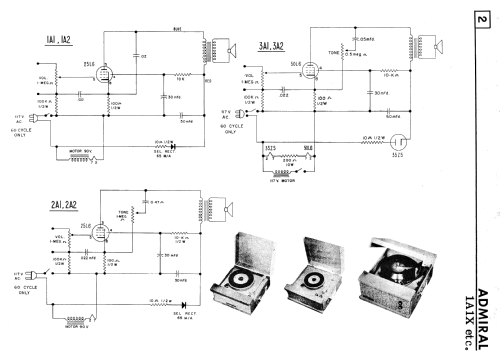

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 25L6

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 2A2 Ch= 2A2X - Canadian Admiral Co. Ltd; Long

• Shape
• Tablemodel, with any shape - general.

• Notes

• The Admiral model 2A2X is a 1-tube manual record player with tone control.

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
