4L21X Ch= 4L2X

4L21X Ch= 4L2X; Canadian Admiral Co. (ID = 2254869) Radio

4L21X Ch= 4L2X; Canadian Admiral Co. (ID = 2254870) Radio
4L21X Ch= 4L2X; Canadian Admiral Co. (ID = 2254871) Radio
Use red slider bar for more.
4L21X Ch= 4L2X; Canadian Admiral Co. (ID = 2254871) Radio
Canadian Admiral Co.: 4L21X Ch= 4L2X [Radio] ID = 2254871 889x664
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4L21X Ch= 4L2X, Canadian Admiral Co. Ltd; Long Branch, Ont.:

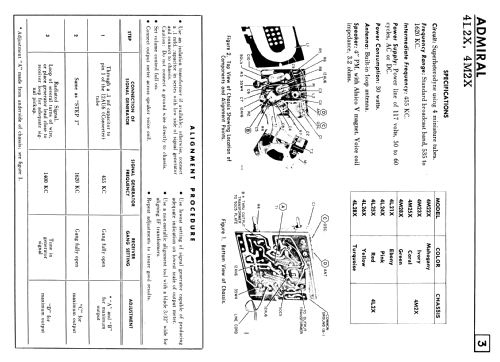

From RCC manual.

Country:  Canada
Manufacturer / Brand:  Canadian Admiral Co. Ltd; Long Branch, Ont.
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 12AU6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 4L21X Ch= 4L2X - Canadian Admiral Co. Ltd; Long
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes

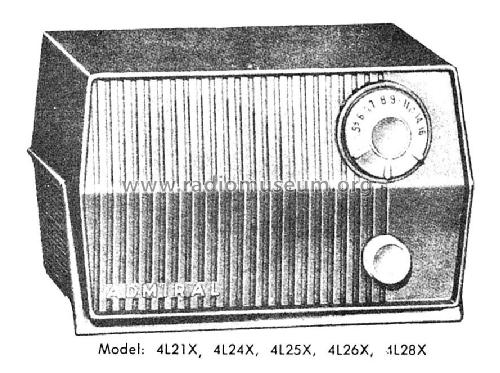

The Canadian Admiral model 4L21X is a 4-tube table radio for broadcast reception. Has internal loop antenna.

Model Colour
4L21X Ebony
4L24X Pink
4L25X Red
4L26X Yellow
4L28X Turquoise



Literature/Schematics (1) Radio College of Canada (RCC) (1957 Supplement 41)

Model page created by Tom Seeger. See "Data change" for further contributors.



All listed radios etc. from Canadian Admiral Co. Ltd; Long Branch, Ont.
Here you find 209 models, 132 with images and 201 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
