5B1A

5B1A ; Canadian Admiral Co. (ID = 809713) Radio

5B1A ; Canadian Admiral Co. (ID = 809714) Radio
Use red slider bar for more.
5B1A ; Canadian Admiral Co. (ID = 809713) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  Canadian Admiral Co. Ltd; Long Branch, Ont.
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (perh.Changer)
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 5B1A - Canadian Admiral Co. Ltd; Long
Notes Built-in loop antenna.

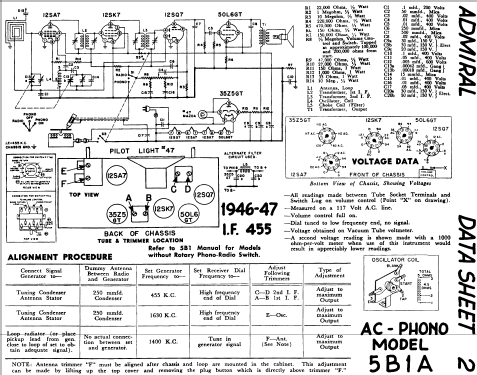

Circuit diagram reference Radio College of Canada
Mentioned in RCC Admiral Pages 1a, 2

Model page created by Robin Roeckers. See "Data change" for further contributors.
