5D31X

5D31X ; Canadian Admiral Co. (ID = 2141859) Radio

5D31X ; Canadian Admiral Co. (ID = 2141860) Radio
5D31X ; Canadian Admiral Co. (ID = 2141858) Radio
Use red slider bar for more.
5D31X ; Canadian Admiral Co. (ID = 2141858) Radio
Canadian Admiral Co.: 5D31X [Radio] ID = 2141858 338x392
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5D31X, Canadian Admiral Co. Ltd; Long Branch, Ont.:
From RCC Sup 30

Country:  Canada
Manufacturer / Brand:  Canadian Admiral Co. Ltd; Long Branch, Ont.
Year: 1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 5D31X - Canadian Admiral Co. Ltd; Long
Shape Tablemodel, with any shape - general.
Notes

The Canadian Admiral model 5D31X is a table top combination radio / record changer.

Available in 3 colours:
5D31X - Ebony
5D32X - Maroon
5D33X - Ivory

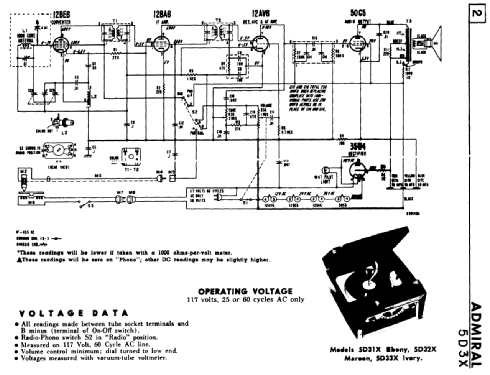

Literature/Schematics (1) Radio College of Canada (RCC) (Supplement 30 pages 2 and 3.)

Model page created by Tom Seeger. See "Data change" for further contributors.
