5G23X Ch= 5G2

5G23X Ch= 5G2; Canadian Admiral Co. (ID = 2361681) Radio

5G23X Ch= 5G2; Canadian Admiral Co. (ID = 2361682) Radio
5G23X Ch= 5G2; Canadian Admiral Co. (ID = 2361680) Radio
Use red slider bar for more.
5G23X Ch= 5G2; Canadian Admiral Co. (ID = 2361680) Radio
Canadian Admiral Co.: 5G23X Ch= 5G2 [Radio] ID = 2361680 1074x613
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5G23X Ch= 5G2, Canadian Admiral Co. Ltd; Long Branch, Ont.:
Brown model 5G22X shown for reference.

Country:  Canada
Manufacturer / Brand:  Canadian Admiral Co. Ltd; Long Branch, Ont.
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 110-115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 5G23X Ch= 5G2 - Canadian Admiral Co. Ltd; Long
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes

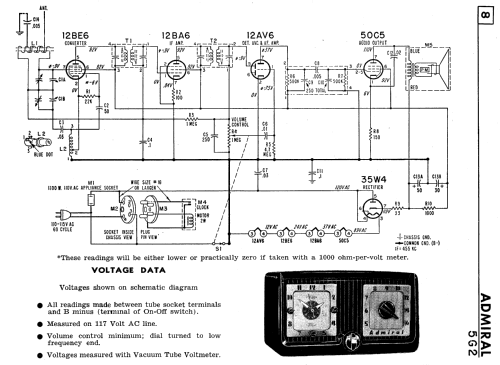

The Admiral model 5G23X is a 5-tube clock radio with ivory colour cabinet. Has built-in antenna. Same schematic as model 5G22X.

Literature/Schematics (1) Radio College of Canada (RCC) (Supplement 24)
