5L32X

5L32X ; Canadian Admiral Co. (ID = 2090994) Radio
Use red slider bar for more.
5L32X ; Canadian Admiral Co. (ID = 2090994) Radio

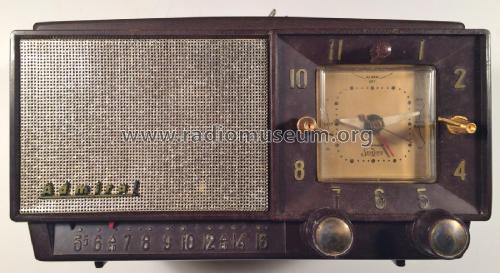

Canadian Admiral Co.: 5L32X [Radio] ID = 2090994 1400x766
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5L32X, Canadian Admiral Co. Ltd; Long Branch, Ont.

Country:  Canada
Manufacturer / Brand:  Canadian Admiral Co. Ltd; Long Branch, Ont.
Year: 1954/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1.9 W (max.)
from Radiomuseum.org Model: 5L32X - Canadian Admiral Co. Ltd; Long
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 260 x 140 x 135 mm / 10.2 x 5.5 x 5.3 inch
Notes

The Admiral 5L32X has essentially the same circuit as the 5E32X but without the timer operated appliance outlet. Clock knob arrangement is different.

The clock mechanism is made by the Sessions Clock Company, AC power only.

Color is Mahogany.

Net weight (2.2 lb = 1 kg) 5 lb 0 oz (5 lb) / 2.270 kg
Literature/Schematics (1) Radio College of Canada (RCC) (1954 Radio Supplement # 32)

Model page created by Jack Sorensen. See "Data change" for further contributors.
