5R12 Ch= 5R1

5R12 Ch= 5R1; Canadian Admiral Co. (ID = 486077) Radio

5R12 Ch= 5R1; Canadian Admiral Co. (ID = 809857) Radio
5R12 Ch= 5R1; Canadian Admiral Co. (ID = 486074) Radio 5R12 Ch= 5R1; Canadian Admiral Co. (ID = 486075) Radio
5R12 Ch= 5R1; Canadian Admiral Co. (ID = 486076) Radio
Use red slider bar for more.
5R12 Ch= 5R1; Canadian Admiral Co. (ID = 486074) Radio

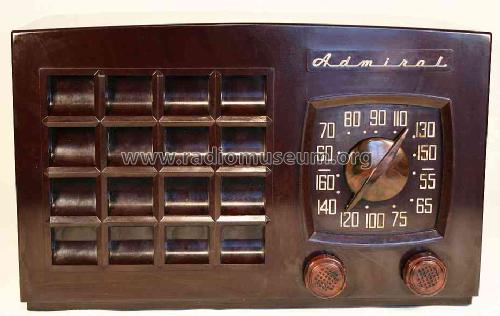

Canadian Admiral Co.: 5R12 Ch= 5R1 [Radio] ID = 486074 933x591
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5R12 Ch= 5R1, Canadian Admiral Co. Ltd; Long Branch, Ont.

Country:  Canada
Manufacturer / Brand:  Canadian Admiral Co. Ltd; Long Branch, Ont.
Year: 1949 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6 35Z5
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 5R12 Ch= 5R1 - Canadian Admiral Co. Ltd; Long
Material Bakelite or Plastics (type unknown)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 10.5 x 6.5 x 6 inch / 267 x 165 x 152 mm
Notes Built-in loop antenna. An identical set was made by USA Admiral with the same model number.
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Source of data - - Data from my own collection
Circuit diagram reference Radio College of Canada
Mentioned in RCC Admiral Supplement Pages 4, 9
Literature/Schematics (1)

Model page created by Keith Staines. See "Data change" for further contributors.
