HT2237X Ch= 3K1X
Canadian Admiral Co. Ltd; Long Branch, Ont.
- Country
- Canada
- Manufacturer / Brand
- Canadian Admiral Co. Ltd; Long Branch, Ont.
- Year
- 1958 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 341080

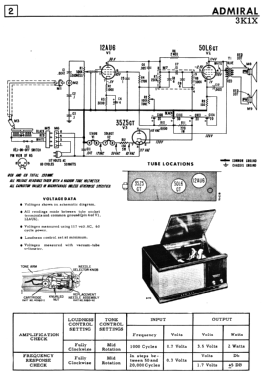

From RCC manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: HT2237X Ch= 3K1X - Canadian Admiral Co. Ltd; Long
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
-
The Admiral models HT2237X (colour = blond) and HT2236X (colour = mahogany) use chassis 3K1X and are the same except for colour. These Admiral models are AC operated 4 speed automatic record changers and have two loudspeakers with 5" diameter each.
May be similar to USA model HT2237.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1958 supplement 44)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
