Stereo Record Player 613X Ch= 4X2X

Canadian Admiral Co. Ltd; Long Branch, Ont.

  • Year
  • 1958 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 341601

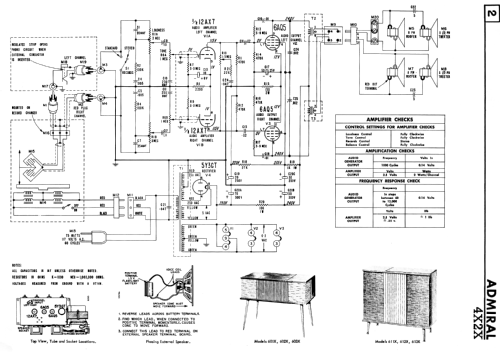

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Record Player 613X Ch= 4X2X - Canadian Admiral Co. Ltd; Long
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • The Admiral model 613X is a 4-tube stereo record player. Has an 8 inch woofer and 3.5 inch tweeter for each channel. Same as model 611X and 612X except for cabinet finish.

  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
