Candle 10 Transistor PTR-109

Tokyo Transistor Industry Co., LTD.; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Tokyo Transistor Industry Co., LTD.; Tokyo

Year
1961

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
106831

- Brand: Candle

Schematics

Candle 10 Transistor PTR-109; Tokyo Transistor (ID = 472040) Radio — Tokyo Transistor Candle 10 Transistor PTR-109 (1)

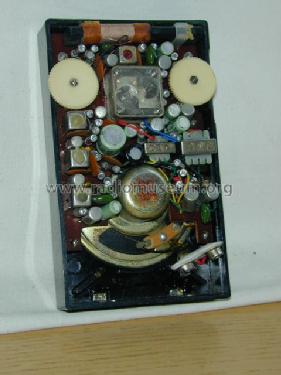

Candle 10 Transistor PTR-109; Tokyo Transistor (ID = 472036) Radio — Tokyo Transistor Candle 10 Transistor PTR-109 (1)

Candle 10 Transistor PTR-109; Tokyo Transistor (ID = 260911) Radio — Tokyo Transistor Candle 10 Transistor PTR-109 (2)

Candle 10 Transistor PTR-109; Tokyo Transistor (ID = 472038) Radio — Tokyo Transistor Candle 10 Transistor PTR-109 (1)

Candle 10 Transistor PTR-109; Tokyo Transistor (ID = 530422) Radio — Tokyo Transistor Candle 10 Transistor PTR-109 (2)
200280066522/ Pic. just as type proof!

Candle 10 Transistor PTR-109; Tokyo Transistor (ID = 1913874) Radio — Tokyo Transistor Candle 10 Transistor PTR-109 (2)

Candle 10 Transistor PTR-109; Tokyo Transistor (ID = 1913875) Radio — Tokyo Transistor Candle 10 Transistor PTR-109 (2)

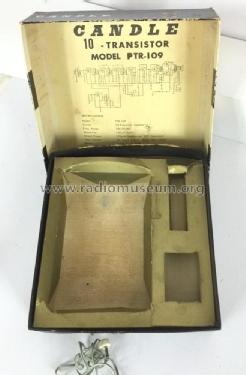

Candle 10 Transistor PTR-109; Tokyo Transistor (ID = 1913876) Radio — Tokyo Transistor Candle 10 Transistor PTR-109 (2)

Candle 10 Transistor PTR-109; Tokyo Transistor (ID = 1913877) Radio — Tokyo Transistor Candle 10 Transistor PTR-109 (2)

Candle 10 Transistor PTR-109; Tokyo Transistor (ID = 1913879) Radio — Tokyo Transistor Candle 10 Transistor PTR-109 (2)

Candle 10 Transistor PTR-109; Tokyo Transistor (ID = 1913881) Radio — Tokyo Transistor Candle 10 Transistor PTR-109 (2)

Candle 10 Transistor PTR-109; Tokyo Transistor (ID = 2549774) Radio — Tokyo Transistor Candle 10 Transistor PTR-109 (1)

Candle 10 Transistor PTR-109; Tokyo Transistor (ID = 2549775) Radio — Tokyo Transistor Candle 10 Transistor PTR-109 (1)

Candle 10 Transistor PTR-109; Tokyo Transistor (ID = 2549776) Radio — Tokyo Transistor Candle 10 Transistor PTR-109 (1)

Technical Specifications

Number of Transistors
10

Semiconductors

Main principle
Superheterodyne (common)

Tuned circuits
5 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Dry Batteries / 1 x 9 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

Power out
0.1 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Candle 10 Transistor PTR-109 - Tokyo Transistor Industry Co.,

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
65 x 110 x 30 mm / 2.6 x 4.3 x 1.2 inch

Notes

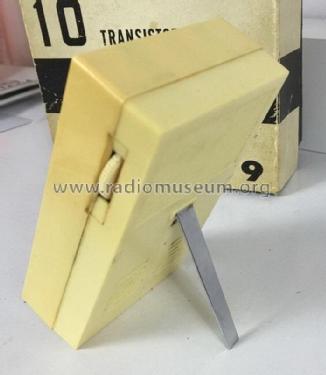

Foldable stand at the back side. Leather bag included.

Similar to Kensington Super PTR-109.

Net weight (2.2 lb = 1 kg)
0.2 kg / 0 lb 7 oz (0.441 lb)

Author
Model page created by Peter Hoddow. See "Data change" for further contributors.
