Connect 10

Connect 10 ; Canton; Weilrod (ID = 813211) Misc Connect 10 ; Canton; Weilrod (ID = 813212) Misc
Connect 10 ; Canton; Weilrod (ID = 813208) Misc Connect 10 ; Canton; Weilrod (ID = 1247787) Misc
Connect 10 ; Canton; Weilrod (ID = 1247789) Misc
Use red slider bar for more.
Connect 10 ; Canton; Weilrod (ID = 813211) Misc
Canton; Weilrod: Connect 10 [Misc] ID = 813211 850x623
Select picture or schematic to display from thumbnails on the right and click for download.
For model Connect 10, Canton; Weilrod

Country:  Germany
Manufacturer / Brand:  Canton; Weilrod
Year: 1980 ?? Category: Miscellaneous (Other, Various) - see notes
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Connect 10 - Canton; Weilrod
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 150 x 80 x 90 mm / 5.9 x 3.1 x 3.5 inch

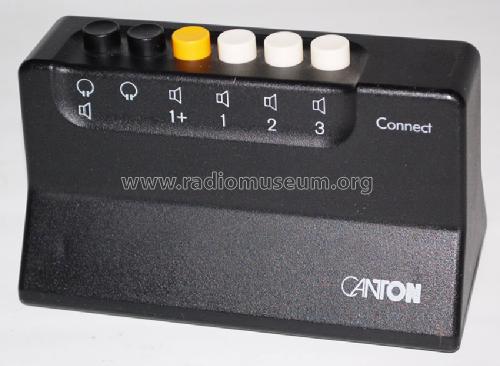

Notes "Connect 10" von Canton ist ein kleines Umschaltpult für 3 Lautsprecher-Paare und zwei Kopfhörer.
Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Source of data - - Data from my own collection

Model page created by Jürgen Küting. See "Data change" for further contributors.
