Gamma R800

Gamma R800; Canton; Weilrod (ID = 353850) Radio Gamma R800; Canton; Weilrod (ID = 353851) Radio
Gamma R800; Canton; Weilrod (ID = 353852) Radio
Use red slider bar for more.

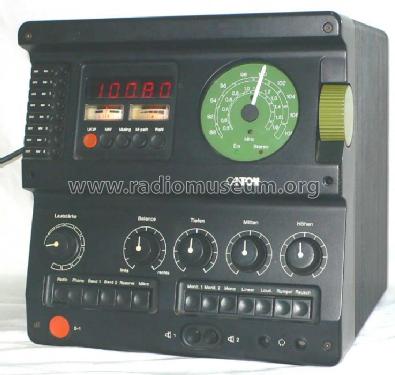

Gamma R800; Canton; Weilrod (ID = 353850) Radio
Canton; Weilrod: Gamma R800 [Radio] ID = 353850 738x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gamma R800, Canton; Weilrod

Country:  Germany
Manufacturer / Brand:  Canton; Weilrod
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Gamma R800 - Canton; Weilrod
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 275 x 280 x 280 mm / 10.8 x 11 x 11 inch
Notes HiFi-Receiver. Vier Lautsprecherbuchsen. Digitale und Analoge Frequenzanzeige. Acht Sendespeicherplätze. Eingänge: Phono, 2× Band, Reserve. Zwei KH-Ausgänge Frontseitig.
Net weight (2.2 lb = 1 kg) 15.4 kg / 33 lb 14.7 oz (33.921 lb)
Source of data - - Data from my own collection

Model page created by Peter Böhm. See "Data change" for further contributors.
