LE900
Use red slider bar for more.

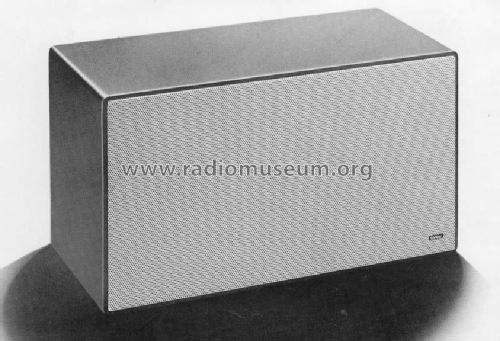

Canton; Weilrod: LE900 [Speaker-P] ID = 563618 844x576
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1974 | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | 3 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: LE900 - Canton; Weilrod |
| Material | Wooden case |
| Shape | Miscellaneous shapes - described under notes. |
| Dimensions (WHD) | 585 x 315 x 27 mm / 23 x 12.4 x 1.1 inch |
| Notes | 3-Wege-HiFi-Box mit 90 Watt Sinus. Impedanz 4-8 Ohm. Übertragungsbereich 19-25000 Hz.
Frequenzweiche (Flankensteilheit 12/24 dB): Übergänge bei 700 und 2900Hz. Volumen: 50 Liter brutto. Ausführung: Nussbaum natur oder Polyesterbeschichtung in Weiss bzw. anthrazit. Rundgelochtes Leichtmetallgitter. Hoch oder quer zu stellen. Aufhängevorrichtung. 5-Meter Anschlussleitung mit Normstecker fest montiert. |
| Net weight (2.2 lb = 1 kg) | 14 kg / 30 lb 13.4 oz (30.837 lb) |
| Source of data | -- Original prospect or advert |
Model page created by Franz Scharner. See "Data change" for further contributors.
