Quinto 510

Quinto 510; Canton; Weilrod (ID = 1697591) Speaker-P Quinto 510; Canton; Weilrod (ID = 1697592) Speaker-P
Quinto 510; Canton; Weilrod (ID = 1697593) Speaker-P
Use red slider bar for more.
Quinto 510; Canton; Weilrod (ID = 1697591) Speaker-P
Canton; Weilrod: Quinto 510 [Speaker-P] ID = 1697591 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Quinto 510, Canton; Weilrod

Country:  Germany
Manufacturer / Brand:  Canton; Weilrod
Year: 1982 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details Hi-Fi equipment
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Quinto 510 - Canton; Weilrod
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 230 x 340 x 210 mm / 9.1 x 13.4 x 8.3 inch
Notes

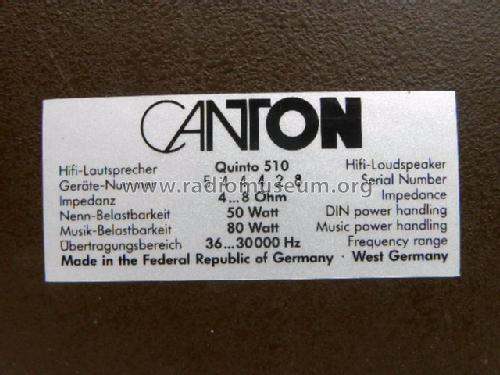

3 Lautsprecher: 2 Hochtöner (Durchmesser 3 u. 4 cm) 1 Bass (17 cm), Nenn-Musikbelastbarkeit 50/80 Watt, Impedanz 4...8 Ohm, Übertragungsbereich 36...30000 Hz. Gehäusefarben: Nussbaum, schwarz und weiss.

Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
