Cadre 760

Cadre 760; CARAC C.A.R.A.C.; (ID = 306301) Antenna Cadre 760; CARAC C.A.R.A.C.; (ID = 306302) Antenna
Cadre 760; CARAC C.A.R.A.C.; (ID = 306303) Antenna Cadre 760; CARAC C.A.R.A.C.; (ID = 306304) Antenna
Use red slider bar for more.
Cadre 760; CARAC C.A.R.A.C.; (ID = 306301) Antenna
CARAC C.A.R.A.C.;: Cadre 760 [Antenna] ID = 306301 314x604
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cadre 760, CARAC (C.A.R.A.C.); Paris

Country:  France
Manufacturer / Brand:  CARAC (C.A.R.A.C.); Paris
Year: 1926 ?? Category: Antenna (Aerial) or Coupler
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Cadre 760 - CARAC C.A.R.A.C.; Paris
Material Various materials
Shape Console with any shape - in general
Dimensions (WHD) 240 x 500 x 280 mm / 9.4 x 19.7 x 11 inch
Notes

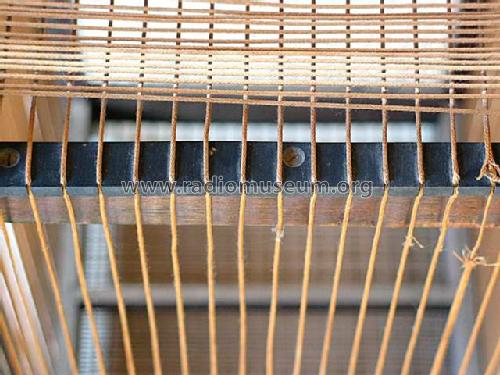

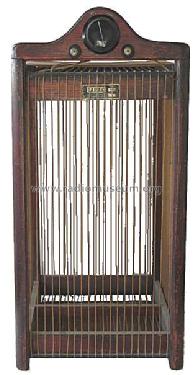

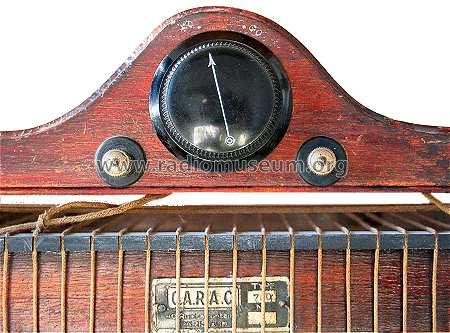

Loop aerial for BC and LW (PO et GO). Wooden frame.

Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Source of data - - Data from my own collection

Model page created by John Hupse † 28.9.20. See "Data change" for further contributors.



All listed radios etc. from CARAC (C.A.R.A.C.); Paris
Here you find 25 models, 7 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
