• Country
• Belgium

• Manufacturer / Brand
• Carad; Kuurne

• Year
• 1951–1953 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 156929

• • Brand: Carpentier, Ets. G.L.

• Number of Tubes
• 5

• Valves / Tubes
• ECC40 EF40 EL41 6X5 6U5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Tape Recorder EMR32PA - Carad; Kuurne

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 315 x 175 x 366 mm / 12.4 x 6.9 x 14.4 inch

• Notes

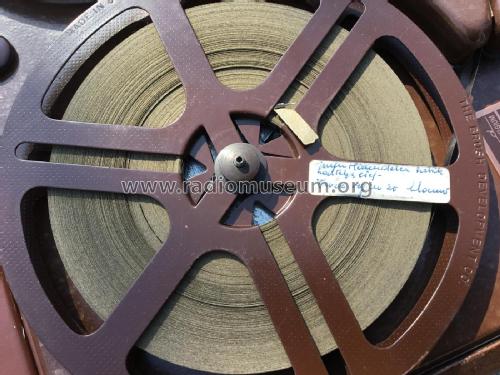

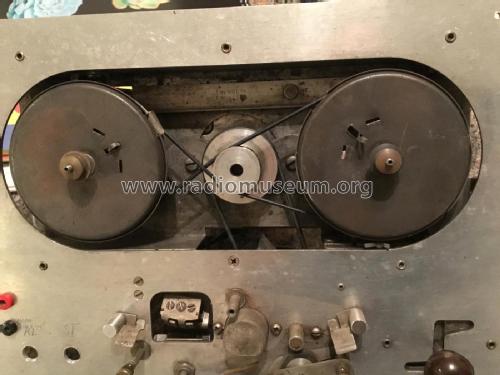

• This tape recorder is assembled/manufactured by Carad; Kuurne (Belgium) ca. 1950. The tape recorder mechanism is the US-manufactured Brush SoundMirror BK416. Power supply, case and electronics are made by Carad; Kuurne, including amplifier and built-in speaker (90 x 145 mm).

• External source of data
• Jacques Deseyne, Belgium

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
