Analoger Prüfstift AP2

Analoger Prüfstift AP2; Carl Zeiss Jena, VEB (ID = 1762209) Equipment

Analoger Prüfstift AP2; Carl Zeiss Jena, VEB (ID = 1762203) Equipment

Analoger Prüfstift AP2; Carl Zeiss Jena, VEB (ID = 1762205) Equipment

Analoger Prüfstift AP2; Carl Zeiss Jena, VEB (ID = 1762206) Equipment

Analoger Prüfstift AP2; Carl Zeiss Jena, VEB (ID = 1762207) Equipment

Analoger Prüfstift AP2; Carl Zeiss Jena, VEB (ID = 1762208) Equipment

Analoger Prüfstift AP2; Carl Zeiss Jena, VEB (ID = 1762202) Equipment

Analoger Prüfstift AP2; Carl Zeiss Jena, VEB (ID = 1762210) Equipment
Analoger Prüfstift AP2; Carl Zeiss Jena, VEB (ID = 1755546) Equipment Analoger Prüfstift AP2; Carl Zeiss Jena, VEB (ID = 1756153) Equipment
Analoger Prüfstift AP2; Carl Zeiss Jena, VEB (ID = 1756154) Equipment Analoger Prüfstift AP2; Carl Zeiss Jena, VEB (ID = 2287325) Equipment
Analoger Prüfstift AP2; Carl Zeiss Jena, VEB (ID = 2287326) Equipment
Use red slider bar for more.
Analoger Prüfstift AP2; Carl Zeiss Jena, VEB (ID = 1755546) Equipment
Carl Zeiss Jena, VEB: Analoger Prüfstift AP2 [Equipment] ID = 1755546 728x283
Select picture or schematic to display from thumbnails on the right and click for download.
For model Analoger Prüfstift AP2, Carl Zeiss Jena, VEB (Ostd.) (D)

Country:  Germany
Manufacturer / Brand:  Carl Zeiss Jena, VEB (Ostd.) (D)
Year: 1986 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle ZF/IF nicht kHz
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Analoger Prüfstift AP2 - Carl Zeiss Jena, VEB Ostd. D
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 340 x 28 x 20 mm / 13.4 x 1.1 x 0.8 inch
Notes

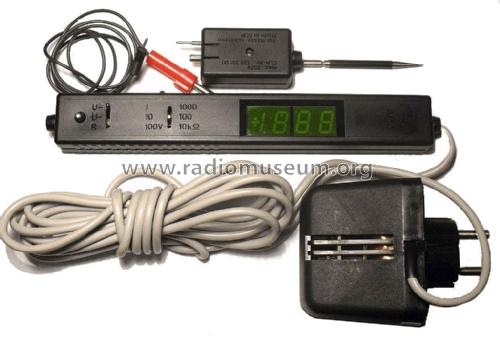

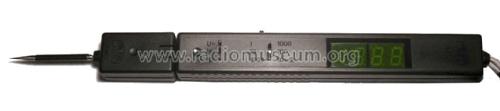

AP 2 - Miniatur-Digitalvoltmeter, Messbereiche Gleich- / Wechselspannung: 1 V, 10 V, 100 V, 250 V mit Vorteiler.

Widerstand: 10 KΩ, 100 kΩ, 1000 kΩ

Stromversorgung über fest angeschlossenes Netzteil.

Maße aufgeschlüsselt:

Prüfstift AP2: 28 x 22 x 200 mm³
Vorteiler: 28 x 22 x 50 mm³
Netzteil: 70 x 50 x 60 mm³

Net weight (2.2 lb = 1 kg) 0.365 kg / 0 lb 12.9 oz (0.804 lb)
Mentioned in - - Manufacturers Literature

Model page created by Peter Faulstich. See "Data change" for further contributors.
