• Country
• Germany

• Manufacturer / Brand
• Carl Zeiss Jena, VEB (Ostd.) (D)

• Year
• 1985 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 263696

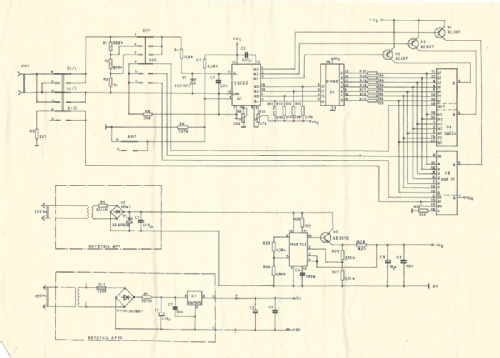

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• SC307 SC307 SC307 SD337 C520D D146C MAA723 VQE22 VQE24

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Prüfstift, digitalanzeigend AP1/AP10 - Carl Zeiss Jena, VEB Ostd. D

• Shape
• Miscellaneous shapes - described under notes.

• Notes

• Digitalvoltmeter-Prüfstift für Messungen bis 120 V DC;
  Messbereiche (umschaltbar): 1/10/100 V; Umschalter für Polarität und Schalter zur Messwertspeicherung; Messwertanzeige über LED-Anzeigen VQE22/VQE24; Eingangswiderstand: 1 MΩ.
  Fest angeschlossenes Steckernetzteil zur Stromversorgung.

• Price in first year of sale
• 280.00 Mark

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Michael Mischke. See "Data change" for further contributors.
