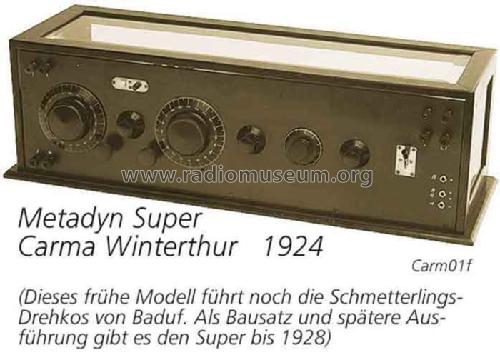

Metadyn alt; Carma, (ID = 1463) Radio
Carma,: Metadyn alt [Radio] ID = 1463 700x493
Select picture or schematic to display from thumbnails on the right and click for download.
For model Metadyn alt, Carma, Präzisionswerkstätte; Winterthur

Country:  Switzerland
Manufacturer / Brand:  Carma, Präzisionswerkstätte; Winterthur
Year: 1926/1927 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: A410 RE144 A410 A410 A410 A410 B409
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Metadyn alt - Carma, Präzisionswerkstätte;
Material Wooden case
Dimensions (WHD) 660 x 200 x 230 mm / 26 x 7.9 x 9.1 inch
Notes Schmetterlings-Drehkos
Price in first year of sale 700.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Radios von gestern, 1. Auflage
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
