Multimètre de poche "dead beat"

Multimètre de poche 'dead beat' ; Sutra Sutron - voir (ID = 1521417) Equipment
Use red slider bar for more.
Multimètre de poche 'dead beat' ; Sutra Sutron - voir (ID = 1521417) Equipment
Sutra Sutron - voir: Multimètre de poche "dead beat" [Equipment] ID = 1521417 904x759
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multimètre de poche 'dead beat', Sutra (Sutron) - voir aussi CASÉ; Paris

Country:  France
Manufacturer / Brand:  Sutra (Sutron) - voir aussi CASÉ; Paris
Year: 1929 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Multimètre de poche "dead beat" - Sutra Sutron - voir aussi CASÉ
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 55 x 55 x 20 mm / 2.2 x 2.2 x 0.8 inch
Notes

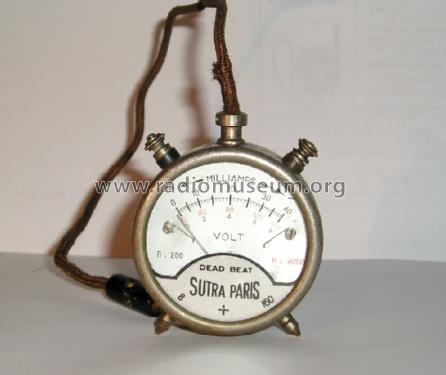

Pocket-shaped multimeter with three measuring ranges:

Voltage : 0 - 8 V (Ri 200 Ohm), 0 - 160 V (R: 4000 Ohm)  and
Current : 0 - 40 mA

Net weight (2.2 lb = 1 kg) 0.095 kg / 0 lb 3.3 oz (0.209 lb)

Model page created by Mario Coelho. See "Data change" for further contributors.
