LCD Color Television TV-1750N

LCD Color Television TV-1750N; CASIO Computer Co., (ID = 2002174) Television LCD Color Television TV-1750N; CASIO Computer Co., (ID = 2002175) Television
LCD Color Television TV-1750N; CASIO Computer Co., (ID = 2002176) Television LCD Color Television TV-1750N; CASIO Computer Co., (ID = 2002177) Television
LCD Color Television TV-1750N; CASIO Computer Co., (ID = 2002178) Television LCD Color Television TV-1750N; CASIO Computer Co., (ID = 2002179) Television
Use red slider bar for more.

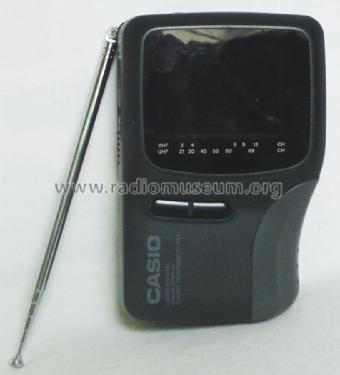

LCD Color Television TV-1750N; CASIO Computer Co., (ID = 2002174) Television
CASIO Computer Co.,: LCD Color Television TV-1750N [Television] ID = 2002174 817x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model LCD Color Television TV-1750N, CASIO Computer Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  CASIO Computer Co., Ltd.; Tokyo
Year: 1994 Category: Television Receiver (TV) or Monitor
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.8 cm = 1.1 inch
Power out
from Radiomuseum.org Model: LCD Color Television TV-1750N - CASIO Computer Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 91 x 135 x 38 mm / 3.6 x 5.3 x 1.5 inch
Notes

2,5-Zoll Farbdisplay (HQM) mit hochleuchtender Hintergrundbeleuchtung.

Empfangsnorm (Modell N) ist CCIR Standard PAL (B/G,H);
Empfangsbereiche: UHF Kanal 21 bis 69 und VHF Kanal 2 bis 12.

Sendersuchlauf, Helligkeits- und Lautstärkeregler, 55cm dreh- und schwenkbare Teleskopantenne, Ohrhörerbuchse 3,5 mm.

Leistungsaufnahme ca. 3,6W, Netzbetrieb mit mit Netzgerät AD-K65 oder AD-K64 möglich, Autoadapter CA-K65.


Net weight (2.2 lb = 1 kg) 0.240 kg / 0 lb 8.5 oz (0.529 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
