For model LCD Color Television TV-500, CASIO Computer Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  CASIO Computer Co., Ltd.; Tokyo
Year: 1988 Category: Television Receiver (TV) or Monitor
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: LCD Color Television TV-500 - CASIO Computer Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 100 x 77 x 42 mm / 3.9 x 3 x 1.7 inch
Notes

Farb LCD Pocket TV mit 49mm LCD Colour display, CCIR PAL B/G/H-System.

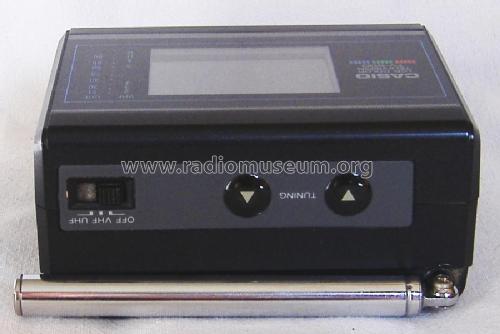

 Dreh- und schwenkbare Teleskopantenne, automatischer Suchlauf AUF/AB mit 2 Tastern, Bereichswahl und EIN/AUS oben; DC-Versorgungsanschluss, Lautsprecher und 3,5mm A/V-Anschluss links; 3,5mm Ohrhöreranschluss, Lautstärke und Helligkeitsregler rechts; Farbsättigung unten.

Leistungsaufnahme ca. 3W

Empfangsbereiche:
 UHF: CH21 - 69,
 VHF: CH2 - 12.

Passende Adapter:
  AD-K65 (AC),
  CA-K65 (Automobil),

Net weight (2.2 lb = 1 kg) 0.211 kg / 0 lb 7.4 oz (0.465 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
