LCD-Color Television TV-600 N

LCD-Color Television TV-600 N; CASIO Computer Co., (ID = 1688124) Television LCD-Color Television TV-600 N; CASIO Computer Co., (ID = 468395) Television
LCD-Color Television TV-600 N; CASIO Computer Co., (ID = 468396) Television LCD-Color Television TV-600 N; CASIO Computer Co., (ID = 468397) Television
LCD-Color Television TV-600 N; CASIO Computer Co., (ID = 468398) Television LCD-Color Television TV-600 N; CASIO Computer Co., (ID = 468399) Television
LCD-Color Television TV-600 N; CASIO Computer Co., (ID = 468400) Television LCD-Color Television TV-600 N; CASIO Computer Co., (ID = 468402) Television
LCD-Color Television TV-600 N; CASIO Computer Co., (ID = 468407) Television LCD-Color Television TV-600 N; CASIO Computer Co., (ID = 1688125) Television
Use red slider bar for more.
LCD-Color Television TV-600 N; CASIO Computer Co., (ID = 1688124) Television
CASIO Computer Co.,: LCD-Color Television TV-600 N [Television] ID = 1688124 335x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model LCD-Color Television TV-600 N, CASIO Computer Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  CASIO Computer Co., Ltd.; Tokyo
Year: 1995 Category: Television Receiver (TV) or Monitor
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Other Combination - see Notes
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 cm = 0.8 inch
Power out
from Radiomuseum.org Model: LCD-Color Television TV-600 N - CASIO Computer Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 81 x 131 x 32 mm / 3.2 x 5.2 x 1.3 inch
Notes Empfangsnorm (Modell N) ist CCIR Standard PAL (B/G,H) 39600 Bildpunkte, 2,2-Zoll Farbdisplay (LCD), Sendersuchlauf, Helligkeitsregler, Empfangsbereiche: UHF Kanal 21 bis 69 und VHF Kanal 2 bis 12, Treibersystem = HQM, Teleskopantenne, Externe Antenneneingangsbuchse vorhanden, Ohrhörerbuchse 3,5 mm, Netzbetrieb mit mit Netzgerät AD-K65 möglich,
Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Source of data - - Data from my own collection

Model page created by Karlheinz Fischer. See "Data change" for further contributors.



All listed radios etc. from CASIO Computer Co., Ltd.; Tokyo
Here you find 105 models, 93 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
CASIO Computer Co.,: LCD-Color Television TV-600 N
Threads: 1 | Posts: 2
Hits: 1943     Replies: 1
casio: TV-600 N; LCD-Color Television
Riccardo Vinci
17.Jul.14
  1

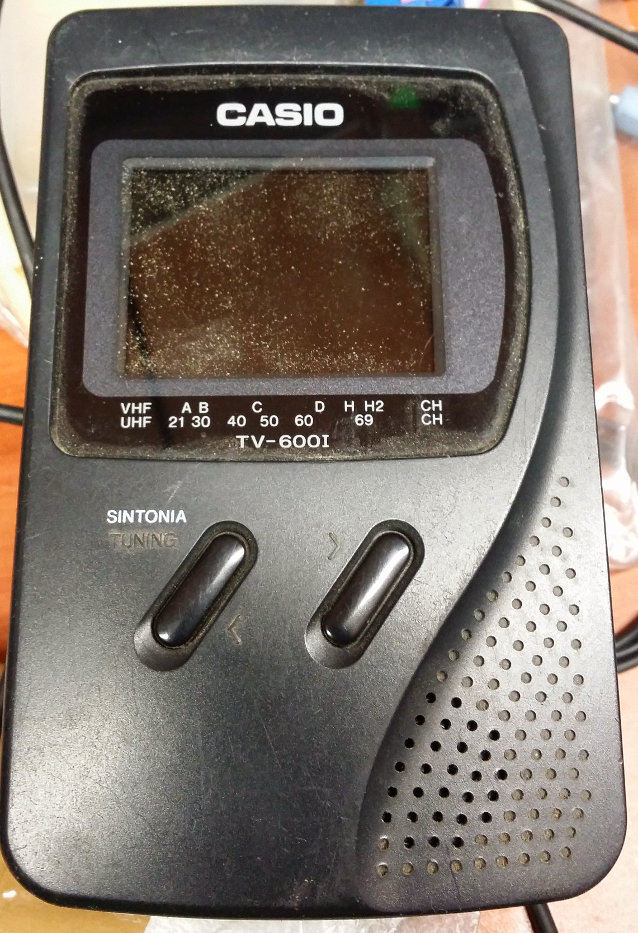

Sono in possesso di un modello simile, uniche differenze sono:

modello TV-600 I (solo per italia)

Sistema Pal  sistema tv B/G

devo inserirelo come nuovo modello?

allego relative foto.

Attachments

Wolfgang Scheida
22.Jul.14
  2

Hello



Please upload the version I as a new model. Add the different channel spacing too.

Kind regards Scheida




CASIO Computer Co.,: LCD-Color Television TV-600 N
End of forum contributions about this model
