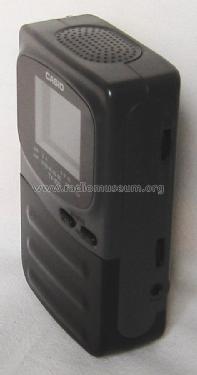

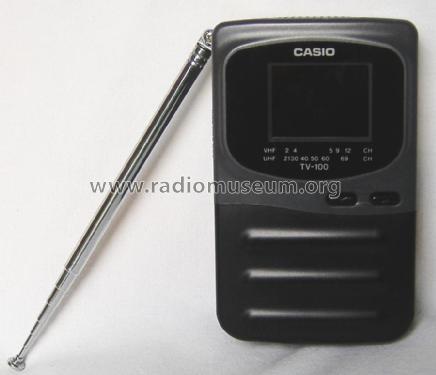

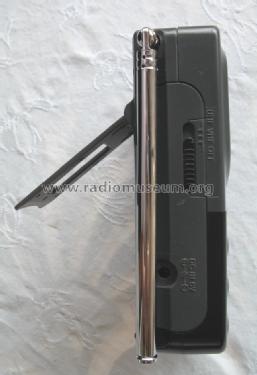

LCD ColorTelevision TV-100N (VHF/UHF)

LCD ColorTelevision TV-100N; CASIO Computer Co., (ID = 1306018) Television LCD ColorTelevision TV-100N; CASIO Computer Co., (ID = 1306025) Television
LCD ColorTelevision TV-100N; CASIO Computer Co., (ID = 1306053) Television LCD ColorTelevision TV-100N; CASIO Computer Co., (ID = 1306054) Television
LCD ColorTelevision TV-100N; CASIO Computer Co., (ID = 1306056) Television LCD ColorTelevision TV-100N; CASIO Computer Co., (ID = 1306057) Television
LCD ColorTelevision TV-100N; CASIO Computer Co., (ID = 1306058) Television LCD ColorTelevision TV-100N; CASIO Computer Co., (ID = 1306059) Television
LCD ColorTelevision TV-100N; CASIO Computer Co., (ID = 1306060) Television LCD ColorTelevision TV-100N; CASIO Computer Co., (ID = 1306062) Television
Use red slider bar for more.
LCD ColorTelevision TV-100N; CASIO Computer Co., (ID = 1306018) Television
CASIO Computer Co.,: LCD ColorTelevision TV-100N [Television] ID = 1306018 684x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model LCD ColorTelevision TV-100N (VHF/UHF), CASIO Computer Co., Ltd.; Tokyo:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  CASIO Computer Co., Ltd.; Tokyo
Year: 1993 Category: Television Receiver (TV) or Monitor
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details

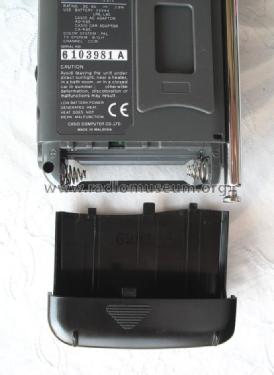

Power type and voltage Batteries / addl. power jack / 4 × 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: LCD ColorTelevision TV-100N - CASIO Computer Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 70 x 115 x 35 mm / 2.8 x 4.5 x 1.4 inch
Notes

Pal, VHF 2-12, UHF 21-68,
Screen: 35 × 27 mm.
Optional AC-Adaptor AD-K65 or Car-Adaptor CA-K65.
Power consumption 2,9W.

Net weight (2.2 lb = 1 kg) 0.180 kg / 0 lb 6.3 oz (0.396 lb)
Price in first year of sale 199.00 DM

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
