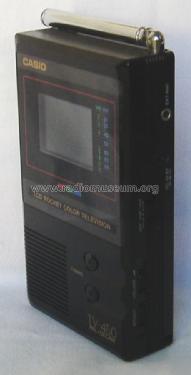

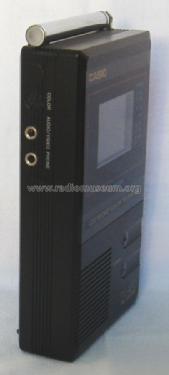

LCD Pocket Color Television TV-450

LCD Pocket Color Television TV-450; CASIO Computer Co., (ID = 1688158) Television LCD Pocket Color Television TV-450; CASIO Computer Co., (ID = 1688159) Television
LCD Pocket Color Television TV-450; CASIO Computer Co., (ID = 1688160) Television LCD Pocket Color Television TV-450; CASIO Computer Co., (ID = 1688161) Television
Use red slider bar for more.
LCD Pocket Color Television TV-450; CASIO Computer Co., (ID = 1688158) Television
CASIO Computer Co.,: LCD Pocket Color Television TV-450 [Television] ID = 1688158 875x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model LCD Pocket Color Television TV-450, CASIO Computer Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  CASIO Computer Co., Ltd.; Tokyo
Year: 1989 ? Category: Television Receiver (TV) or Monitor
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.6 cm = 1.4 inch
Power out
from Radiomuseum.org Model: LCD Pocket Color Television TV-450 - CASIO Computer Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 87 x 149 x 32 mm / 3.4 x 5.9 x 1.3 inch
Notes

LCD Taschen-Farbfernsehgerät TV-450:
UHF: Kanal 21 - 69
VHF: Kanal  2 - 12,
Automatischer Suchlauf mit 2 Tasten für jeweils AUF und AB,
2" LCD hoch auflösendes Farb Display,
schwenkbare Teleskopantenne auf Oberseite,
Anschluss für
 - externe Antenne
 - Ohrhörer
 - externe Spannungsversorgung 6VDC
 - Audio/Video Eingang
Regler für Helligkeit, Farbintensität und Lautstärke

Net weight (2.2 lb = 1 kg) 0.294 kg / 0 lb 10.4 oz (0.648 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
