LCD Pocket Colour Television TV-8E / TV-100G/H

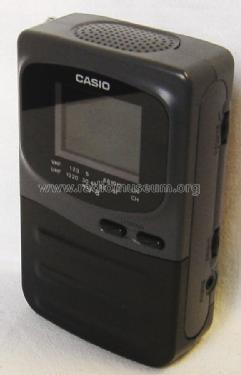

LCD Pocket Colour Television TV-8E / TV-100G/H; CASIO Computer Co., (ID = 1788798) Television LCD Pocket Colour Television TV-8E / TV-100G/H; CASIO Computer Co., (ID = 1788799) Television
LCD Pocket Colour Television TV-8E / TV-100G/H; CASIO Computer Co., (ID = 1788801) Television LCD Pocket Colour Television TV-8E / TV-100G/H; CASIO Computer Co., (ID = 1788804) Television
LCD Pocket Colour Television TV-8E / TV-100G/H; CASIO Computer Co., (ID = 1788807) Television LCD Pocket Colour Television TV-8E / TV-100G/H; CASIO Computer Co., (ID = 1788809) Television
Use red slider bar for more.
LCD Pocket Colour Television TV-8E / TV-100G/H; CASIO Computer Co., (ID = 1788798) Television
CASIO Computer Co.,: LCD Pocket Colour Television TV-8E / TV-100G/H [Television] ID = 1788798 623x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model LCD Pocket Colour Television TV-8E / TV-100G/H, CASIO Computer Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  CASIO Computer Co., Ltd.; Tokyo
Year: 1993 ? Category: Television Receiver (TV) or Monitor
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: LCD Pocket Colour Television TV-8E / TV-100G/H - CASIO Computer Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 73 x 118 x 34 mm / 2.9 x 4.6 x 1.3 inch
Notes

Farb LCD Pocket TV mit 1,6" HR LCD Colour display (twisted nematic type),
High Quality Matrix driver System, HLF Hintergrundbeleuchtung.

Dreh- und schwenkbare Teleskopantenne, Bereichswahl und DC-Versorgungsanschluss links, 3,5mm Ohrhöreranschluss, Lautstärke und Helligkeitsregler rechts, automatischer Suchlauf AUF/AB mit 2 Fronttastern.

Leistungsaufnahme ca. 2,9W

Empfangsbereiche:
UHF: CH3 - 57 (TV-8E)
       CH14 - 69 (TV-100G/H)
VHF: CH1 - 12 (TV-8E)
       CH2 - 13 (TV-100G/H)

Das Modell TV-8E (Standard PAL D) ist für China,
TV-100G (Standard PAL M) für Brasilien und Laos
und TV-100H (Standard PAL N) für Argentinien, Paraguay und Uruguay
konzipiert.

Passende Adapter:
AD-K64/AD-K65 (AC),
CA-K65 (Automobil),
OS-76C (Kassettenanschluss).

Net weight (2.2 lb = 1 kg) 0.190 kg / 0 lb 6.7 oz (0.419 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
