LCD Portable Television TV-3500S

LCD Portable Television TV-3500S; CASIO Computer Co., (ID = 1723781) Television LCD Portable Television TV-3500S; CASIO Computer Co., (ID = 1723782) Television
LCD Portable Television TV-3500S; CASIO Computer Co., (ID = 1723783) Television LCD Portable Television TV-3500S; CASIO Computer Co., (ID = 1723784) Television
LCD Portable Television TV-3500S; CASIO Computer Co., (ID = 1723785) Television
Use red slider bar for more.
LCD Portable Television TV-3500S; CASIO Computer Co., (ID = 1723781) Television
CASIO Computer Co.,: LCD Portable Television TV-3500S [Television] ID = 1723781 666x901
Select picture or schematic to display from thumbnails on the right and click for download.
For model LCD Portable Television TV-3500S, CASIO Computer Co., Ltd.; Tokyo:
Thanks for Mr.Bubiko_v, Hungary, Eger and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Japan
Manufacturer / Brand:  CASIO Computer Co., Ltd.; Tokyo
Year: 1990 ?? Category: Television Receiver (TV) or Monitor
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Batteries / addl. power jack / LR6: 6 × 1,5 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: LCD Portable Television TV-3500S - CASIO Computer Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

TV System: PAL B/G, H, I/I, D/D, D/K; SECAM B/G, H, D/K, K'/-

Channel Scheme: CCIR/China/FOT/OIRT/UK.

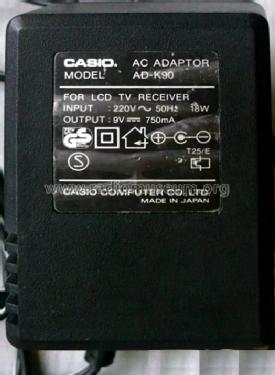

Usable with AC-adapter AD-K90 or car-adapter CA-K90.

Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
