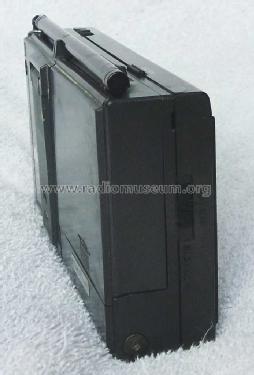

Pocket Color Television TV-1000

Pocket Color Television TV-1000; CASIO Computer Co., (ID = 1586124) Television Pocket Color Television TV-1000; CASIO Computer Co., (ID = 1586126) Television
Pocket Color Television TV-1000; CASIO Computer Co., (ID = 1586127) Television Pocket Color Television TV-1000; CASIO Computer Co., (ID = 1586128) Television
Pocket Color Television TV-1000; CASIO Computer Co., (ID = 1586129) Television Pocket Color Television TV-1000; CASIO Computer Co., (ID = 1586130) Television
Pocket Color Television TV-1000; CASIO Computer Co., (ID = 1882449) Television Pocket Color Television TV-1000; CASIO Computer Co., (ID = 1882450) Television
Pocket Color Television TV-1000; CASIO Computer Co., (ID = 1882451) Television Pocket Color Television TV-1000; CASIO Computer Co., (ID = 2281167) Television
Use red slider bar for more.
Pocket Color Television TV-1000; CASIO Computer Co., (ID = 1586124) Television
CASIO Computer Co.,: Pocket Color Television TV-1000 [Television] ID = 1586124 639x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pocket Color Television TV-1000, CASIO Computer Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  CASIO Computer Co., Ltd.; Tokyo
Year: 1985 Category: Television Receiver (TV) or Monitor
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 5 x 1,5; 5 x 1,2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Pocket Color Television TV-1000 - CASIO Computer Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 161 x 83 x 36 mm / 6.3 x 3.3 x 1.4 inch
Notes Casio TV-1000 Pocket Color Television; ~2.5"/64 mm LCD, electronic tuner with OSD, TV line-, color standard and tuning range depends to version suffix - see index at the Casio main page, telescopic antenna, earphone jack, some versions with 3.5 mm A/V & antenna input, 450 g with batteries, 4 watts power consumption, black and silver body colors known. Please add version suffix at your uploaded pictures and prices! Bitte fügen Sie die zusätzliche Versionsnummer gemäß dem angeschlossenen Index auf der Casio Hauptseite Ihren Bildern und hochgeladenen Preisen hinzu - z.B. "B" für USA.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from CASIO Computer Co., Ltd.; Tokyo
Here you find 105 models, 93 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
