Portable LCD Color Television JY-10D

Portable LCD Color Television JY-10D; CASIO Computer Co., (ID = 1741552) Television Portable LCD Color Television JY-10D; CASIO Computer Co., (ID = 1741553) Television
Portable LCD Color Television JY-10D; CASIO Computer Co., (ID = 1741554) Television Portable LCD Color Television JY-10D; CASIO Computer Co., (ID = 1741555) Television
Portable LCD Color Television JY-10D; CASIO Computer Co., (ID = 1741556) Television Portable LCD Color Television JY-10D; CASIO Computer Co., (ID = 1741557) Television
Portable LCD Color Television JY-10D; CASIO Computer Co., (ID = 1741558) Television Portable LCD Color Television JY-10D; CASIO Computer Co., (ID = 1741559) Television
Portable LCD Color Television JY-10D; CASIO Computer Co., (ID = 1741560) Television Portable LCD Color Television JY-10D; CASIO Computer Co., (ID = 1741957) Television
Use red slider bar for more.
Portable LCD Color Television JY-10D; CASIO Computer Co., (ID = 1741552) Television
CASIO Computer Co.,: Portable LCD Color Television JY-10D [Television] ID = 1741552 500x375
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable LCD Color Television JY-10D, CASIO Computer Co., Ltd.; Tokyo:
Ebay auction by user retro.games.1980 251687905394

Country:  Japan
Manufacturer / Brand:  CASIO Computer Co., Ltd.; Tokyo
Year: 1997 Category: Television Receiver (TV) or Monitor
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details

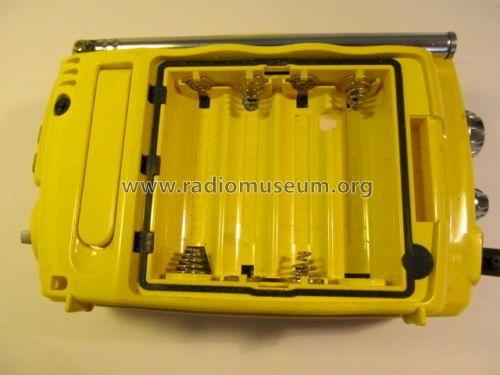

Power type and voltage Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Portable LCD Color Television JY-10D - CASIO Computer Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 138 x 84 x 51 mm / 5.4 x 3.3 x 2 inch
Notes

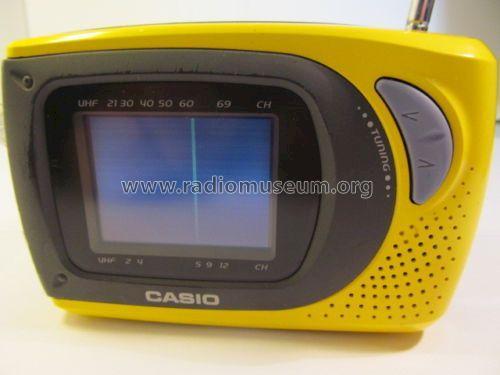

Screen diagonal: 2,3" (6 cm), resolution: 360 x 110.

Power consumption: approx. 3.5W

JY-10D (PAL I for UK, UHF 21-68).

Options: AC adaptor : AD-K65

See also JY-10

Net weight (2.2 lb = 1 kg) 0.230 kg / 0 lb 8.1 oz (0.507 lb)
