Super S35

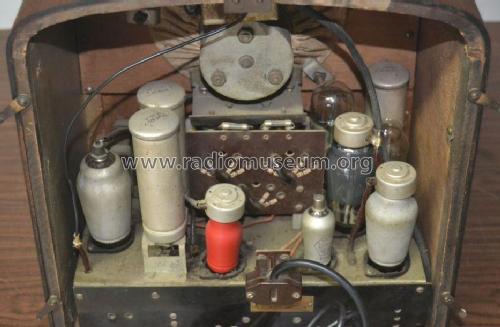

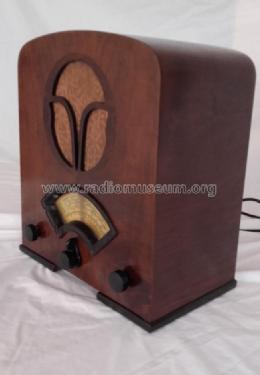

Super S35; Castilla; Madrid (ID = 196260) Radio
Super S35; Castilla; Madrid (ID = 2099793) Radio Super S35; Castilla; Madrid (ID = 196239) Radio
Super S35; Castilla; Madrid (ID = 588664) Radio Super S35; Castilla; Madrid (ID = 2005053) Radio
Super S35; Castilla; Madrid (ID = 2005054) Radio Super S35; Castilla; Madrid (ID = 2005055) Radio
Super S35; Castilla; Madrid (ID = 2005056) Radio Super S35; Castilla; Madrid (ID = 2099794) Radio
Super S35; Castilla; Madrid (ID = 2099795) Radio Super S35; Castilla; Madrid (ID = 2099796) Radio
Use red slider bar for more.
Super S35; Castilla; Madrid (ID = 2099793) Radio
Castilla; Madrid: Super S35 [Radio] ID = 2099793 896x764
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super S35, Castilla; Madrid

Country:  Spain
Manufacturer / Brand:  Castilla; Madrid
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: A4AMS2 A4DD A4GDR A4S A4AM R1054
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Super S35 - Castilla; Madrid
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 330 x 380 x 200 mm / 13 x 15 x 7.9 inch
Price in first year of sale 575.00 ESP
Mentioned in Spanish magazine

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Castilla; Madrid
Here you find 24 models, 24 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
