Power Amplifier CPA-1800

Power Amplifier CPA-1800; Castone Electronic (ID = 1696237) Ampl/Mixer Power Amplifier CPA-1800; Castone Electronic (ID = 1696238) Ampl/Mixer
Use red slider bar for more.

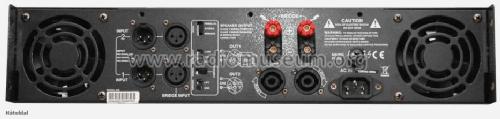

Power Amplifier CPA-1800; Castone Electronic (ID = 1696237) Ampl/Mixer
Castone Electronic: Power Amplifier CPA-1800 [Ampl/Mixer] ID = 1696237 933x243
Select picture or schematic to display from thumbnails on the right and click for download.
For model Power Amplifier CPA-1800, Castone Electronic Kft; Kistarcsa:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Castone Electronic Kft; Kistarcsa
Year: 2005 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - This model requires external speaker(s).
Power out 1400 W (unknown quality)
from Radiomuseum.org Model: Power Amplifier CPA-1800 - Castone Electronic Kft;
Material Metal case
Shape Rack
Dimensions (WHD) 482 x 88 x 476 mm / 19 x 3.5 x 18.7 inch
Notes

2 × 700 W, 5Hz - 45 kHz.

Net weight (2.2 lb = 1 kg) 22 kg / 48 lb 7.3 oz (48.458 lb)
Mentioned in -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Castone Electronic Kft; Kistarcsa
Here you find 73 models, 73 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
