Browni 8 Transistor Two Band Radio

Browni 8 Transistor Two Band Radio ; CBC Charles Brown (ID = 1735654) Radio Browni 8 Transistor Two Band Radio ; CBC Charles Brown (ID = 1735655) Radio
Browni 8 Transistor Two Band Radio ; CBC Charles Brown (ID = 1735656) Radio Browni 8 Transistor Two Band Radio ; CBC Charles Brown (ID = 1735657) Radio

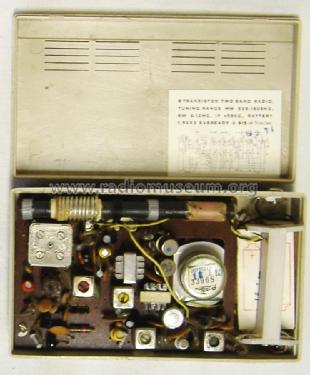

Browni 8 Transistor Two Band Radio ; CBC Charles Brown (ID = 1735659) Radio
Use red slider bar for more.
Browni 8 Transistor Two Band Radio ; CBC Charles Brown (ID = 1735654) Radio
CBC Charles Brown: Browni 8 Transistor Two Band Radio [Radio] ID = 1735654 900x548
Select picture or schematic to display from thumbnails on the right and click for download.
For model Browni 8 Transistor Two Band Radio, CBC Charles Brown (Browni, Magnon, Belair); Tokyo

Country:  Japan
Manufacturer / Brand:  CBC Charles Brown (Browni, Magnon, Belair); Tokyo
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / AA: 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: Browni 8 Transistor Two Band Radio - CBC Charles Brown Browni,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 140 x 83 x 40 mm / 5.5 x 3.3 x 1.6 inch
Notes

Kleines AM Taschengerät mit Anschluss für eine externe Antenne und Ohrhörer 3,5mm.

Wellenbereiche:
MW: 535 - 1605kHz
KW: 4,0 - 12,0MHz

Net weight (2.2 lb = 1 kg) 0.272 kg / 0 lb 9.6 oz (0.599 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
