Browni 7 Solid State 702

Browni 7 Solid State 702; CBC Charles Brown (ID = 2353143) Radio Browni 7 Solid State 702; CBC Charles Brown (ID = 2353147) Radio
Browni 7 Solid State 702; CBC Charles Brown (ID = 2353145) Radio Browni 7 Solid State 702; CBC Charles Brown (ID = 2353142) Radio

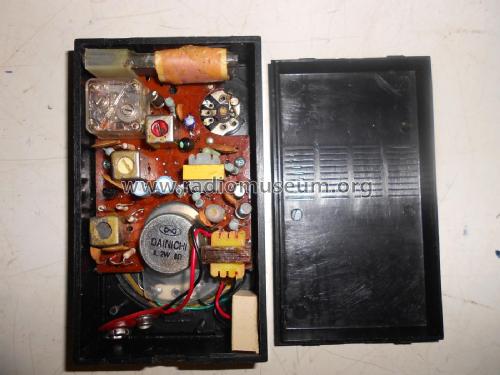

Browni 7 Solid State 702; CBC Charles Brown (ID = 2353144) Radio Browni 7 Solid State 702; CBC Charles Brown (ID = 2353146) Radio
Browni 7 Solid State 702; CBC Charles Brown (ID = 2132324) Radio Browni 7 Solid State 702; CBC Charles Brown (ID = 2132323) Radio
Browni 7 Solid State 702; CBC Charles Brown (ID = 2132325) Radio Browni 7 Solid State 702; CBC Charles Brown (ID = 2132326) Radio
Use red slider bar for more.
Browni 7 Solid State 702; CBC Charles Brown (ID = 2353143) Radio
CBC Charles Brown: Browni 7 Solid State 702 [Radio] ID = 2353143 1400x1866
Select picture or schematic to display from thumbnails on the right and click for download.
For model Browni 7 Solid State 702, CBC Charles Brown (Browni, Magnon, Belair); Tokyo

Country:  Japan
Manufacturer / Brand:  CBC Charles Brown (Browni, Magnon, Belair); Tokyo
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6LR61: 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.8 cm = 2.3 inch
Power out
from Radiomuseum.org Model: Browni 7 Solid State 702 - CBC Charles Brown Browni,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 67 x 116 x 34 mm / 2.6 x 4.6 x 1.3 inch
Notes

MW-Taschenempfänger im Kunststoff Etui, mit 5 Transistoren und 2 als C-B Dioden eingesetzte Transistoren.

Lautstärke/Ein-Aus links, Abstimmung und 3,5mm Ohrhöreranschluss rechts.

Empfangsbereich: 520 - 1600 kHz.

Model no. 702 uncertain, has been taken from a model execution with golden face plate.

Net weight (2.2 lb = 1 kg) 0.167 kg / 0 lb 5.9 oz (0.368 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
