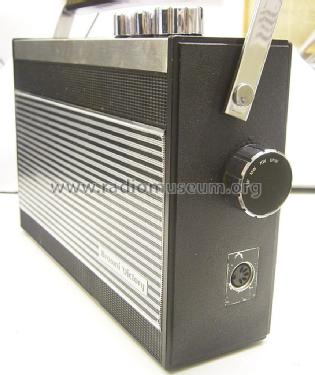

Browni Victory

CBC Charles Brown (Browni, Magnon, Belair); Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 342640

 Technical Specifications

  • Number of Transistors
  • 12
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / AC: 220 / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 1 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Browni Victory - CBC Charles Brown Browni,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 265 x 190 x 75 mm / 10.4 x 7.5 x 3 inch
  • Notes

  • CBC Browni Victory Koffersuper,

    Buchse für externen Lautsprecher,
    Ferritantenne für Langwelle, Mittelwelle und Kurzwelle (4-12 MHz),
    Teleskopantenne,
    5-polige DIN-Buchse,
    12 Transistoren, 5 Dioden,
    Rechteckiger Lautsprecher, 10 x 10 cm.

    FTZ-Nr. 112/214

  • Net weight (2.2 lb = 1 kg)
  • 0.5 kg / 1 lb 1.6 oz (1.101 lb)
  • Author
  • Model page created by Alois Wolf. See "Data change" for further contributors.
