• Year
  • 1955 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 305648

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / PP3: 1 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
  • Power out
  • 0.1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

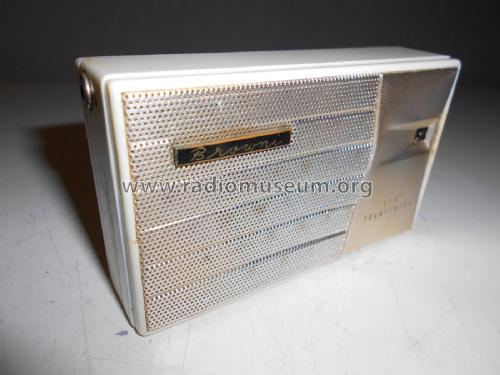

  • Model: Browni Six Transistor - CBC Charles Brown Browni,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 112 x 60 x 32 mm / 4.4 x 2.4 x 1.3 inch
  • Notes
  • controllo volume - antenna interna in ferrite - presa per cuffia.



  • Net weight (2.2 lb = 1 kg)
  • 0.320 kg / 0 lb 11.3 oz (0.705 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
